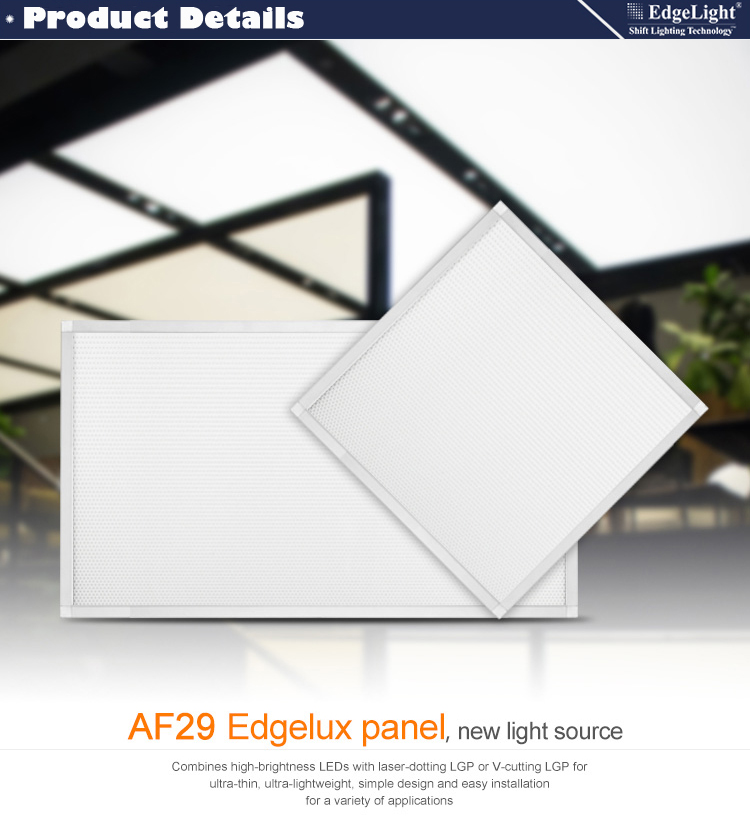

10.6mm thickness high bright ultra slim led wall light guide panel
- Packaging:
- led wall panel: wrap film and plastic bubbles to wrap first, then honycomb cartons or wooden box. also can be customized.
- Transportation:
- Ocean
- Supply Ability:
- 999 Piece/Pieces per Week led wall panel
- Port:
- Shanghai
Product Description
 |  |  |
| 10.6mm thickness high bright ultra slim led wall Light Guide Panel | |||
| Material | acrylic LGP ,aluminum frame | Shape | Rectangle,square,customized shape |
| Power | 2W-120W | LGP Technology | Laser dotting,V-Cutting engraving |
| Light Source | SMD 3528/2835/5050/3535 LED strips | Thickness | 2/3/4/5/6/8/10/20mm |
| Voltage | 12V/24V | Visible Surface | single/double |
| Package | bubble bag , cartons , wood box for long distance transport | ||
| Item | Frame size(mm) | Viewing size(mm) | LED Strip description | ||||||
| Length | Width | Thickness | Length | Width | Voltage(V) | Power(W) | Lighting side | Q'ty/pcs | |
| AF29-A4 | 297 | 210 | 10.6 | 273 | 186 | 12/24 | 2.61 | 297 | 1 |
| AF29-A3 | 420 | 297 | 10.6 | 396 | 273 | 12/24 | 5.19 | 420 | 1 |
| AF29-A2 | 594 | 420 | 10.6 | 570 | 396 | 12/24 | 14.4 | 594 | 2 |
| AF29-A1 | 841 | 594 | 10.6 | 817 | 570 | 12/24 | 17.6 | 841 | 2 |
| The size of led wall panel can be customized | |||||||||
Contact us if you need more details on Led Wall Panel. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Led Light Panel、Ligth Guide Panel. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : LGP&Edgelux panel > Edgelux Panel
